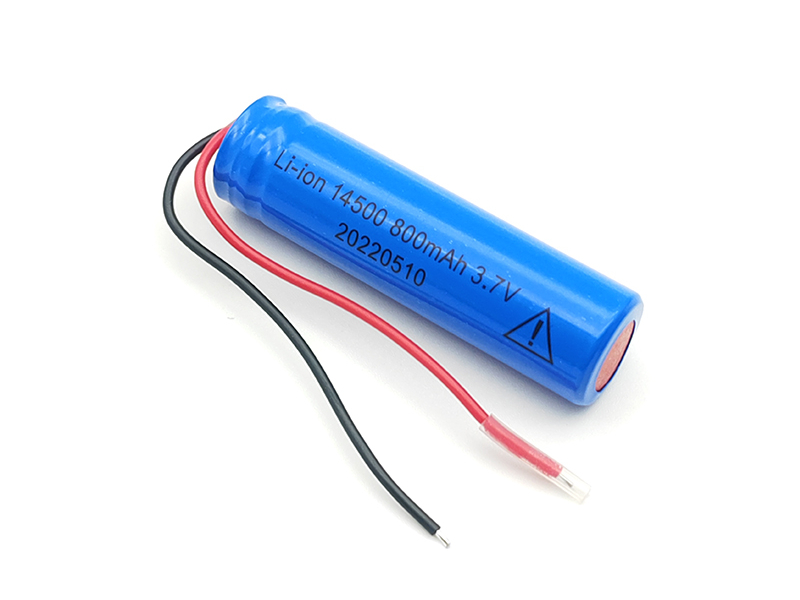

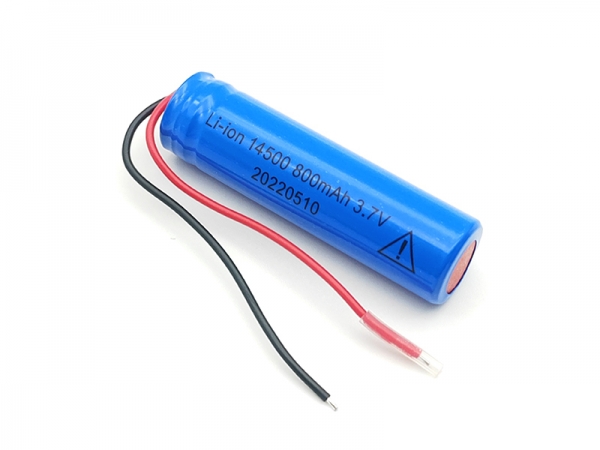

3.7V cylindrical lithium battery product model: XL 3.7V 800mAh
3.7V cylinder lithium battery technical parameters (specific design according to customer requirements - voltage / capacity / size / line)
Single battery model: 14500
·Voltage of single cell: 3.7V
·Nominal voltage after battery pack combination: 3.7V
·Capacity of single battery: 0.8Ah
·Battery combination mode: 1 string 1 parallel
·Voltage range of battery after combination: 3.0~4.2V
·Battery capacity after combination: 0.8Ah
·Battery pack power: 2.96Wh
·Battery pack size:15*15*53mm
·Maximum discharge current: < 0.8A
·Instantaneous discharge current: 1.6~2.4A
·Maximum charging current: 0.2~0.5C
·Charging and discharging times: ＞ 500 times
·Main chips: (Seiko, Ti)
3.7V cylindrical lithium battery
· Conform to relevant national or international battery standards
· All battery products are tested before leaving the factory
